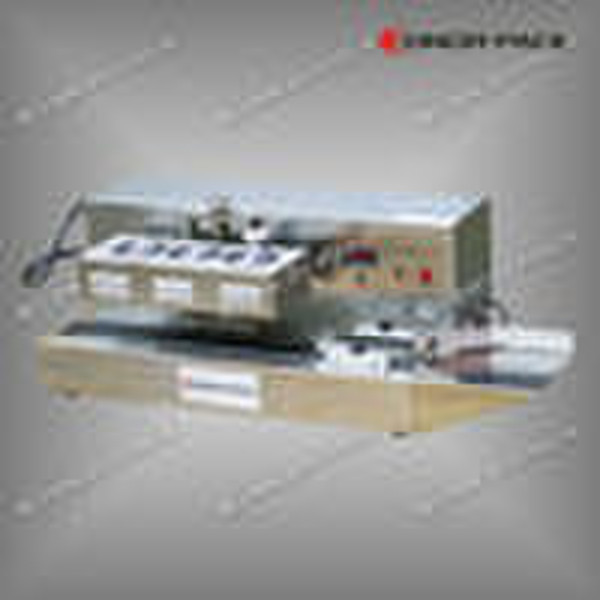

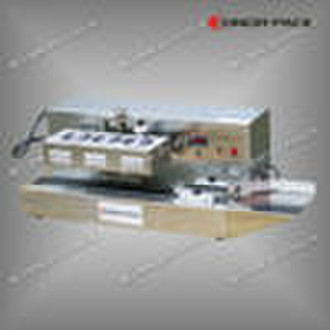

Automatic Induction Cap Sealer DG-1500A (Table Typ

Principal Feature A.Waterless table top induction foils sealer. B.Air Cooling System C.Diagnostic indication lights D.Coil changeover for sealing different range diameter containers through tap selector switch. E.Adjustable seal heads height that suitable for different containers application. F.Auto-Start, after initial start-up, allows delivery and removal of power to the coil by an external contact. G.Stainless Steel for using in harsh environment and easy to do clean & maintenance. H.For plastic bottles (PP, PET, HDPE, PS, PVC etc.) & glass containers. I.Used for industrial of the pharmaceutics, food, cosmetics, chemicals etc. Specification: Voltage220V±10%, 50Hz or per customer specificationPower ConsumptionMax.1700wConveyor Speed0-10m/min (32.8fts/min)Working Speed200bottles per min (PE bottle, Cap dia.32mm, H40mm, distance from foils to heating board 2mm)Cap DiameterFrom20-40mm (0.79-1.57in) and 40-80mm (1.57-3.54in) for changeover Extra 80-120mm (3.54-4.7in) large diameter model is able to be customizedInduction Heads HeightMax. 30cm (able to be customized)Machine SizeL990 x W590 x H520mm (L39 x W23 x H20.5in)Shipment Packing SizeL1090 x W650 x H550mm (L42.9 x W25.6 x H21.7in)Machine WightG.W70kg, N.W47kg
