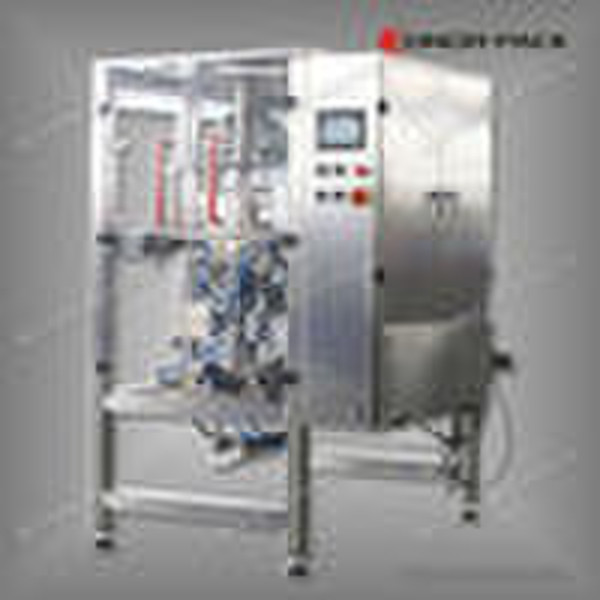

VFZ-380F Vertical 4 Sides Seal Packaging Machine (

Application: For various granules, powder and liquid products, such as pet food, rice, sugar, beans, ground coffee, milk, detergent powder, flour, starch, milk, fruit pastes, shampoo, ketchup, spices etc. Principal Features:A.OMRON PLC & 5.7’’ OMRON Colorful Touch-Screen controlled fully automatic machineB.It automates all or part of filling, bagging, Coding process quickly, accurately, and reliably.C.Servo motor drive & vacuum pump for film transportationD.Horizontal sealing jaw motion driven by SMC cylinderE.Adjustable dwell time for better looking seals and increased packaging speedsF.Film auto tracking, Length registered by OMRON photo sensor and OMRON EncoderG.Heavy-duty jaw assembly houses a cushion for shock and noise abatementH.Simple and fast bag size changeover with one-piece forming sets.I.Unique Pneumatic Film-Reel locking structure to avoid film drawing deflectingJ.Independent temperature adjustment.K.Safety guard with proximity switchL.Batch countingM.Painted Mild Steel ConstructionN.Various types of heating sealable laminated films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, aluminum foil based can be run on the machine.O.All product contact parts are made of food grade stainless steel SS304.P.Compatible with Multi-head Weigher/Scale, Volumetric cup, Auger/Screw Filler, Liquid Piston Filler etc measuring & feeding equipments to complete an entire packaging system.Option:A.304# Stainless Steel Frame with Nickel-plated & Painted Steel BaseB.Perforation devicC.Nitrogen Gas-FlushingTechnical Specification:ModelVFZ-380FVFZ560FBag type4 Side Seal (3 Side Seal by option)Operation ModeIntermittentSpeedUp to 60 bags/minBag Length40 to 300mm (1.6 to 11.8’’)40 to 380mm (1.6 to 14.9’’)Bag Width60 to 190mm (2.4to 7.4’’)100 to 270mm (3.9 to 10.6’’)Reel Film Width≤380mm (14.9’’)≤540mm (21.2’’)Film thickness0.04-0.12mm (40-120mic.)Reel Outer Dia.400mm (15.7’’)Reel Inner Dia.75mm (2.9’’)VoltageAC380V/50Hz, 3phase or Per customer specificationPower Consumption4KWCompressed Air Requirement0.6 MPa0.36 M3/minMachine SizeL1610 x W1166 x H1685mm;(L63.4 X W45.9 X H66.3’’)L1916 x W1316 x H2030mm;(L75.4 x W51.8 x H79.9’’)Machine Weight500kg700kgAbove parameters are able to be customized properly as requests.
